Части машины штрангпресса
Created with Pixso.

Modular Screw Segment For Co-rotating Twin-screw Extruders Customized

Modular Screw Segment For Co-rotating Twin-screw Extruders Customized

Название бренда: ADVS
минимальный заказ: 100 мм
цена: USD2-3/mm
Условия оплаты: Т/Т
Возможность поставки: 1000 м/месяц
Детальная информация
Место происхождения:
Сичуань, Китай
Сертификация:
ISO9001
Название продукта:
Модульный винтовой сегмент
Дизайн:
Индивидуальные
Подать заявку на:
ПП.ПЭ.ПА.ПК.ПЭТ.ПОМ.ППС.ТПЭ.ТПУ
Смешивание элементов:
Модульный и сменный
Винтовой дизайн:
Двойной
Автоматическая оценка:
Автоматический
Упаковывая детали:
деревянный ящик
Поставка способности:
1000 м/месяц
Описание продукта

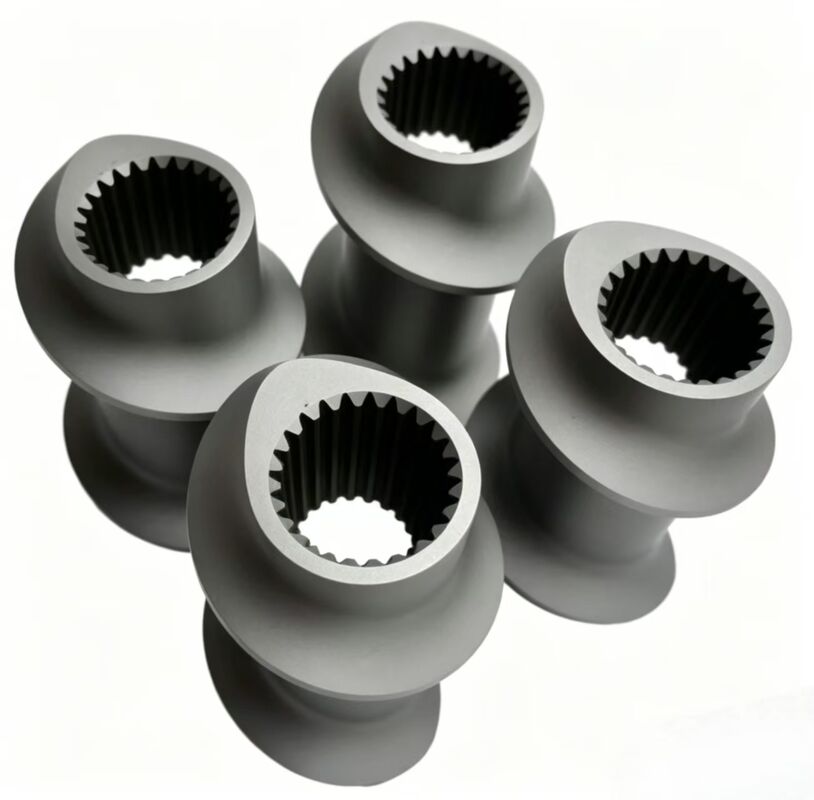

Modular Screw Segment For Co-rotating Twin-screw Extruders Customized
Product Overview

This product is the modular screw segment, a core component of co-rotating twin-screw extruders. As the key part for material conveying, shearing, and mixing, it precisely matches with the barrel and shaft to form a complete extrusion system. It is widely used in production lines for plastic modification, filler masterbatch, glass fiber reinforcement, and functional masterbatch.

Key Features
  • Precision Meshing Structure

    Equipped with a high-precision splined inner bore for shaft connection, the external thread forms a self-cleaning meshing structure with the mating screw element. This eliminates material residue and dead zones, ensuring stable material conveying and efficient mixing.

  • High Wear & Corrosion Resistance

    Made of nitrided alloy steel or bimetallic material with surface hardening treatment (nitriding / hardfacing alloy), it exhibits excellent wear and corrosion resistance. It is compatible with highly abrasive materials such as high-filled calcium carbonate, glass fiber, and carbon black, significantly extending service life.

  • Modular Building Block Design

    Screw segments with different leads and types (conveying, shearing, mixing) can be freely combined according to process requirements. This allows flexible adjustment of material residence time, shear strength, and mixing effect, and is compatible with extruders with L/D ratios ranging from 32:1 to 48:1.

  • Precision Machining Tolerances

    Strict control over thread profile, meshing clearance, and spline precision ensures uniform clearance with the barrel and mating screw. This minimizes material backflow, improving extrusion stability and production efficiency.

Types of the Screw Segments
  • Convey Screw Segment
  • Mixing Screw Segment
  • Kneading Block & Disk
  • Transition Screw Element
  • Deep groove transfer element
  • Screw element for side feeder
  • 1-flighted,2-flighted,3-flighted screw elements
Application
  • General Modification: PP/PE blending and low-filled masterbatch, paired with large-lead conveying screw segments for high-speed, high-yield production.
  • High Filling / Reinforcement: High calcium carbonate filling, glass fiber reinforcement, and carbon black masterbatch, paired with small-lead shearing and mixing screw segments to provide strong shearing and dispersion.
  • Functional Masterbatch: Color masterbatch, flame retardant masterbatch, etc., where precise mixing and homogenization are achieved by combining different types of elements
