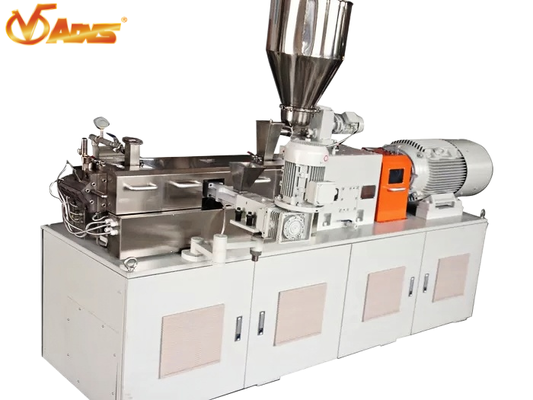

Lab Twin Screw Extruder L D Ratio 32 to 60 For Small Scale Profile Production

Application Scope

• General Engineering Plastics Granulation: ABS, PC, POM, PP, PBT, PE, PA and other conventional plastic materials
• High-performance Special Engineering Plastics: PA6T, PA9T, LCP, PPS, PEEK and other high-temperature resistant materials
• Rubber-Plastic Blending Modification: PP/SBS, PE/SBS, PA/EPDM, EPDM/silicone rubber and other composite blending materials
• Polymer Alloy Blending: PC+ABS, PA+ABS, CPE+ABS, PP+EPDM, PA+SBS and other polymer alloy formulas
• Masterbatch Production: Color masterbatch, functional masterbatch, white masterbatch, black masterbatch and other auxiliary masterbatches
• Material Modification Processing: Polymer filling modification, inorganic filler compounding, glass fiber and carbon fiber reinforcement compounding
• Functional Film Trial Production: BOPP, BOPET, BOPI, BOPA, BOPS functional films, battery separator films, seawater desalination films and other new material films

Core Product Advantages

• High Production Efficiency: Compared with peer extruders of the same specification, our equipment achieves 1-2 times higher output. The matched large-scale production model can reach a maximum output of 12 tons per hour, with superior production capacity.
• Excellent Energy Saving Performance: Our small-sized extruders can replace larger models from other brands under the same output demand, effectively reducing energy consumption, raw material loss and workshop occupation area. Adopting heating rod heating instead of traditional cast copper heaters saves 15%-20% energy consumption.
• Advanced Structural Design: The gearbox is designed with high torque, with a load capacity factor up to 15Nm/cm³. The maximum screw speed can reach 1800rpm, realizing high-speed and high-efficiency extrusion processing.
• Long Service Life: The output shaft bearing adopts non-load-bearing design, which effectively avoids bearing wear of vulnerable parts and greatly extends the service life of core components. The designed service life of the supporting gearbox can reach 72000 working hours (about 10 years).
• High Customization Flexibility: Support customizable D/d ratio ranging from 1.33 to 2.0. The minimum screw and barrel clearance can be adjusted to 0.15mm, meeting personalized processing requirements of different materials and processes.

Company Introduction

Main Products & Services

• Complete twin-screw extruder production lines
• High-torque customized extruder gearboxes
• Automatic LFT-D long fiber reinforced thermoplastic production lines
• Counter-rotating parallel twin-screw extruders
• Differential concentration mixers
• Overhaul and precision machining of large mechanical parts
• Custom design and manufacturing of screw elements for German and Japanese brand extruders

Parts and advantages

Transmission gearbox		The most advanced structure: bilateral symmetry gear drive system; it’s the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.
Screw element		Various kinds of function elements, mixing and dispersing elements developed by ourselves can provie flexible production for kinds of materials and production process. Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based alloy.
Barrel		Barrels are equipped with integrated wear-resistant alloy steel liner, which has the same composition and wearing feacture with W&P .Our mirror polishing seamless barrels, surface finish Ra0.2, verticality between barrels inner hole≤0.015mm；linearity of ten assembled barrels≤0.05mm； Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel, Ni-based alloy, HIP alloy,Co-based alloy.
Torque limiter		Steel ball type safety clutch + torque limiter Made in Germany have the characteristics of accurate torque protection, high repeatability and quick reset.
