Смешивать двойной штрангпресс винта
Created with Pixso.

High Output Compounding Twin Screw Extruder 7200kg Per Hour 1500kW Motor Power

High Output Compounding Twin Screw Extruder 7200kg Per Hour 1500kW Motor Power

Название бренда: ADVS
Номер модели: HPL145
минимальный заказ: 1 комплект
цена: USD 34000-200000
Условия оплаты: Т/Т
Детальная информация
Место происхождения:
Китай
Сертификация:
ISO9001
Власть:
1500 кВт
Состояние:
Новый
Предоставляется послепродажное обслуживание:
Инженеры, доступные для обслуживания оборудования за рубежом
Упаковывая детали:
Железная коробка
Выделять:
двухшнековый экструдер, двухшнековый экструдер
Автоматическая оценка:
Автоматический
Пластик Обработанный:
ПП
Выход:
7200 кг/ч
Описание продукта

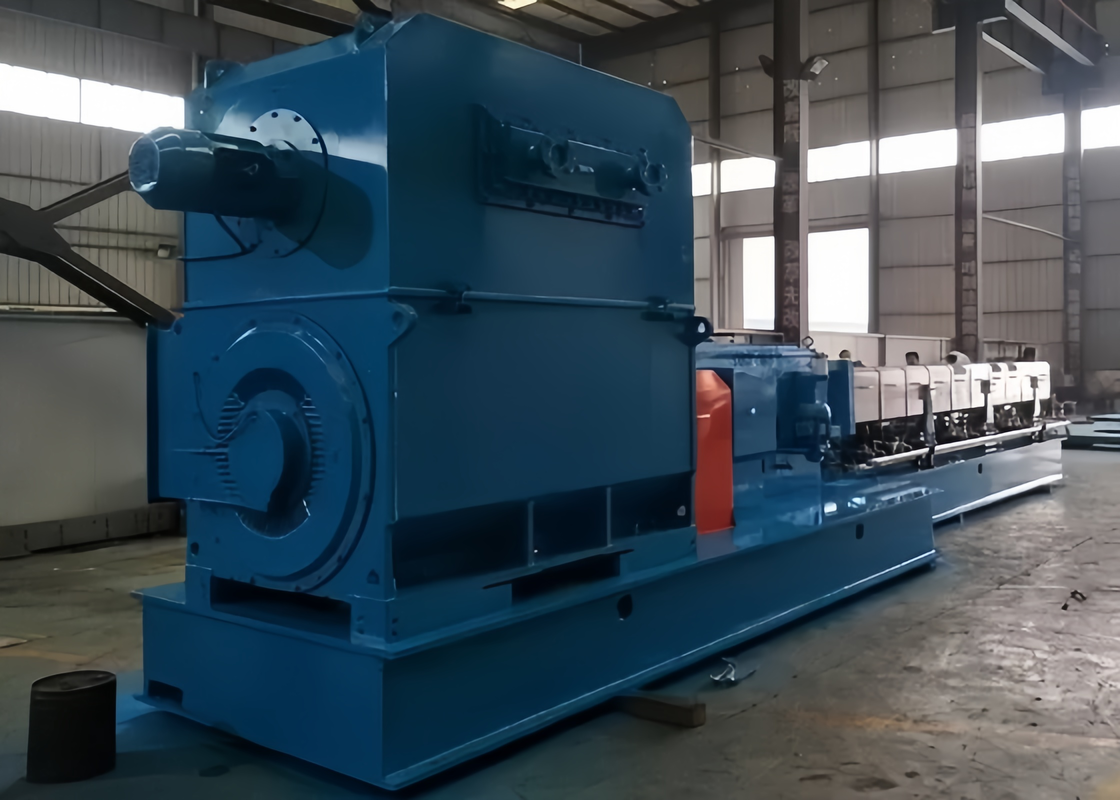

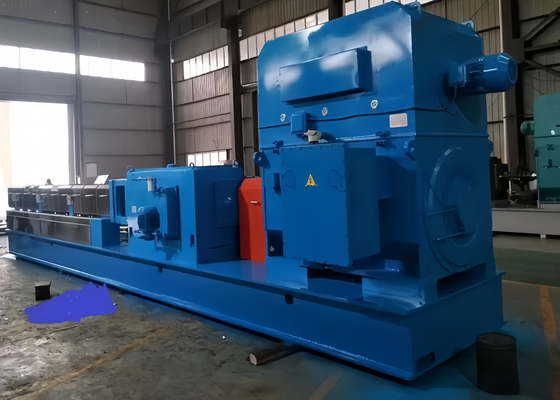

HPL145 High Output Twin Screw Extruder 7200kg/h 1500kW
Product Overview

The HPL145 co-rotating parallel twin-screw granulating extruder is a large-scale industrial polymer processing equipment designed for high-volume compounding and modification production. With a rated output of 7200kg/h and 1500kW main motor power, this model adopts full-intermeshing deep-screw channel structure and multiple feeding system, delivering excellent mixing efficiency and stable production performance. It is the ideal solution for large-scale PP granulation, fiber reinforcement, filler modification and masterbatch production.

Basic Technical Parameters (HPL145)
Item Specification
Model Number HPL145
Product Type Twin Screw Granulating Extruder
Screw Diameter 145mm
L/D Ratio 40:1
Main Motor Power 1500kW
Max Screw Speed 400rpm
Torque Density (T/A3) 12Nm/cm³
Shaft Center Distance 120mm
OD/ID Ratio 1.56
Rated Output 7200kg/h
Screw Configuration Full Intermeshing, Deep Screw Channel
Feeding Mode Multiple Feeding System
Assembly Structure Integral Type Extruder
Exhaust System Multi-stage Exhaust
Control System Fully Automatic Computerized Control
Brand ADVS
Origin Sichuan, China
Packaging Export Standard Iron Box
HPL Series Large-Scale Extruder Full Range Parameters
Parameter HPL133 HPL136 HPL145 HPL177 HPL200
Screw Diameter (mm) 133 136 145 177 200
L/D Ratio 40 40 40 40 40
Main Motor Power (kW) 1200 1200 1500 2500 3600
Max Screw Speed (rpm) 400 400 400 400 360
Torque Density (Nm/cm³) 12 12 12 12 12
Shaft Center Distance (mm) 110 112 120 169 169
OD/ID Ratio 1.56 1.56 1.56 1.56 1.56
Rated Output Range (kg/h) 5000 5000 7200 18000 18000
Core Configuration Advantages

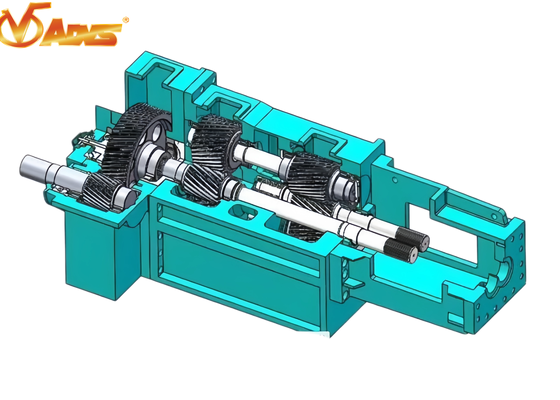

  • Adopts bilateral symmetrical gear drive system with 72000 working hours designed service life, ensuring stable high-torque transmission under long-term heavy load
  • Full-intermeshing self-wiping screw design with deep channel structure, providing excellent dispersive and distributive mixing performance
  • Multiple feeding system supports main feeding, side feeding and liquid feeding, adapting to various raw material feeding requirements
  • Integral heavy-duty steel frame structure with high rigidity and vibration resistance, ensuring stable operation at maximum load
  • Multi-stage exhaust system effectively removes volatile components and moisture from materials, improving finished product quality
  • Fully automatic computerized control system with real-time monitoring of temperature, pressure, speed and torque, supporting recipe storage and one-click operation
Application Scope

This series of extruders is widely applicable for various polymer processing scenarios:

  • Reinforcement Modification: PP, PA, PBT, ABS, PC, POM, PPS, PET reinforced with carbon fiber and glass fiber
  • Filler Modification: PE, PP, EVA filled with calcium carbonate, talcum powder, titanium dioxide, carbon black and other inorganic fillers
  • Masterbatch Production: Color masterbatch, flame retardant masterbatch, carbon black masterbatch, degradable masterbatch and various functional masterbatches
  • Plastic Alloy Compounding: PC+ABS, PA+ABS, PA+PE, PBT+PET and other high-performance polymer alloys
  • Special Engineering Plastics Processing: PEEK, PEI, PPS, PPSU, PA6T, PA9T, LCP and other high-temperature resistant materials
  • High-dispersion Compounding: Nano material dispersion, powder coating processing and high-grade fiber grade masterbatch production
  • Reaction Extrusion: In-situ polymerization and polycondensation reaction extrusion processes
Company Profile

ADVS is a professional manufacturer focusing on the R&D, design and production of co-rotating and counter-rotating parallel twin-screw extruder complete lines. Our equipment features high torque, high efficiency, low energy consumption and excellent cost performance, with a gearbox design life of 72000 working hours. Our manufacturing technology and product quality keep pace with the world’s top extruder manufacturers.

Main Products & Services
  • Complete twin-screw extruder production lines (HPL series: 27mm to 200mm)
  • High-torque customized extruder gearboxes
  • CWJ series side feeders for powder and fiber feeding
  • Automatic LFT-D long fiber reinforced thermoplastic production lines
  • Counter-rotating parallel twin-screw extruders
  • Differential concentration mixers
  • Professional repair and replacement services for imported extruder gearboxes and spare parts
  • Custom design and manufacturing of screw elements compatible with German and Japanese branded extruders

HPL145 Twin Screw Extruder with 7200 kg/h 1500kw
